Many applications such as radar, nuclear research, lithotripsy require obtaining a high level of current value with a high repetition frequency.

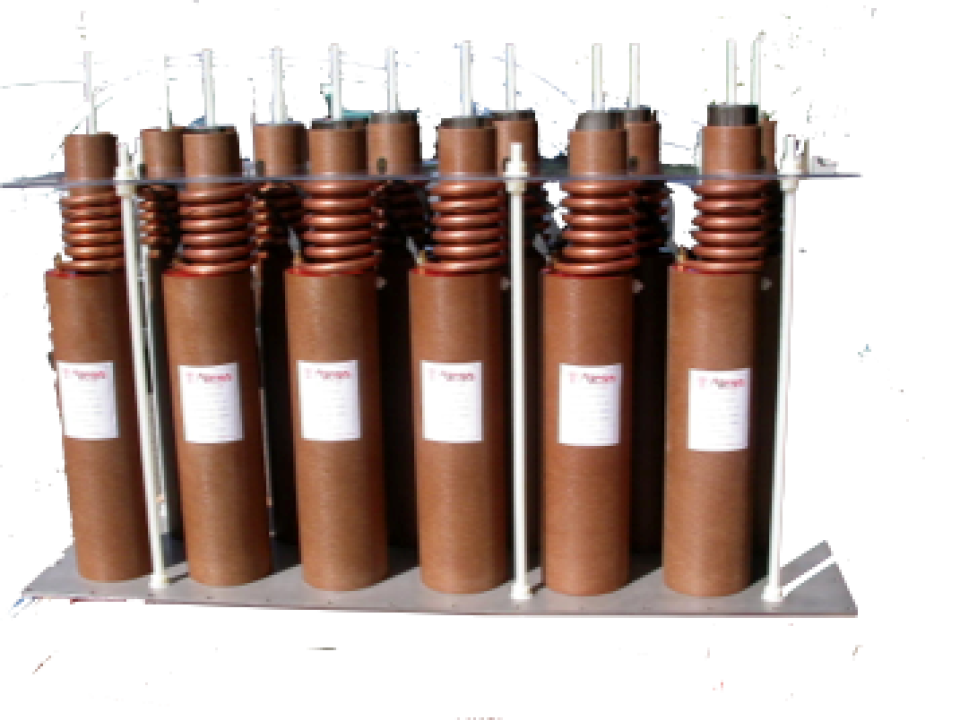

Following specifications, Atesys develops and produces monobloc pulse shapers, easy maintenance and installation.
Their outstanding self-healing properties guarantee high reliability performance.
Performance
- Rated Voltage : from 2 to 40 kV
- Peak Current : up to 20kA
- Pulse Duration : from 1µs
- Raising Time : from 500ns
- Ripple : from 1% peak-peak
- Frequency Range : up to 1kHz
- Loss Factor : < 3 x 10-4 to 1kHz
- Operating Temperature : 0°C to 45°C
- Storage Temperature : -10°C to 50°C
- Standard Life : 25 000 hours (up to 100 000 hours on request)
Applications
-
Nuclear Physics – deflection of beams
-
Radars
-
Bench tests for high voltage elctronics tubes
Standard design
- Moulded monobloc :
- factory pre-adjustment
- setting coils by the user
Terminals : axial leads in brass, thread rod or screw hole with contact plates
Technology
- Self healing : yes
- Dielectric : combinated paper and polypropylen
- Polarized : no
- Impregnation : oil (no P.C.B.)
- Potting : polyurethan resin
Custom
- Compliance with UL94V0 or other standards on request
- Matching with customers requirements on :
- Specific tolerance on capacitor value,
- Operating temperature up to 70°C,
- Inset of fastening nuts or bolts,
- etc...
